10.4-Inch 1000nits High-Brightness Industrial LCD Screen With HDMI Kits

Name: 10.4-Inch 1000nits High-Brightness Industrial LCD Screen With HDMI Kits
Brand: Shenzhen Outdoor Special Display Equipment Co., Ltd.
SKU: TX104-10
Availability: InStock

نام تجاری:	TX
شماره مدل:	TX104-10
مقدار تولیدی:	1 واحد
قیمت:	price negotiation
زمان تحویل:	5 روز کاری

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

چین

گواهی:

اندازه:

10.4 اینچ

روشنایی:

1000 سی دی

نسبت نمایش:

4: 3

زاویه قابل مشاهده:

85/85/80/80 (نوع) (CR≥10)

نسبت کنتراست:

1000:1 (نوع.)

رابط:

HDMI/VGA

دمای عملیاتی::

-30-80 درجه سانتیگراد

جزئیات بسته بندی:

صفحه نمایش یک قطعه + کیت راننده

قابلیت ارائه:

500 واحد/هفته

برجسته کردن:

10.4-inch high-brightness industrial LCD screen,sunlight readable LCD screen with HDMI,1000nits industrial LCD display

sunlight readable LCD screen with HDMI

1000nits industrial LCD display

توضیحات محصول

backlight technology, this LCD screen achieves a brightness of up to 1000 nits. Even in strong outdoor sunlight or high-brightness industrial workshops, it can display clear and sharp images without reflection interference. This ensures that operators can accurately obtain data and operation information at any time, effectively improving work efficiency and reducing operational errors.
Excellent Image Quality with Stable Performance: Adopting a high-resolution (800×600) LCD panel, the screen presents delicate and true-to-life colors. The wide viewing angle (horizontal 160°, vertical 160°) allows multiple operators to view the screen content from different positions without color distortion or image degradation. Moreover, the screen has a fast response time of 5ms, which can smoothly display dynamic data and video signals, making it suitable for real-time monitoring scenarios.
Industrial-Grade Durability & Reliability: Designed with industrial-grade standards, the LCD screen has a wide operating temperature range of -30°C to 80°C, enabling it to work stably in extreme temperature environments such as cold warehouses and high-temperature workshops. The front panel adopts a ruggedized design with an IP65 waterproof and dustproof rating, effectively preventing the intrusion of dust, water droplets, and oil stains, ensuring long-term reliable operation in harsh industrial sites. The lifespan of the LED backlight is up to 50,000 hours, reducing the frequency of maintenance and replacement.
Flexible Compatibility & Easy Installation: The screen supports multiple signal interfaces, including VGA, DVI, HDMI, and AV, which can be easily connected to various industrial control hosts, PLCs, and other equipment. It adopts a standard 10.4-inch mounting hole design, which is compatible with most industrial enclosures and mounting brackets. The lightweight and slim design also saves installation space, making it convenient for integration into different industrial control systems.

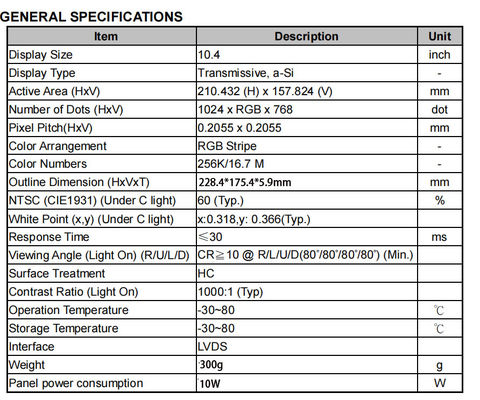

Parameter	Specification
Screen Size	10.4 Inches
Resolution	1024×768 (4:3)
Brightness	1000 Nits
Contrast Ratio	1000:1
Viewing Angle (H/V)	160°/160°
Response Time	5ms (Typ.)
Backlight Type	LED
Backlight Lifespan	≥50,000 Hours
Operating Temperature	-30°C ~ 80°C
Storage Temperature	-30°C ~ 80°C
Signal Interfaces	LVDS
Power Supply	DC 12V

10.4-Inch 1000nits High-Brightness Industrial LCD Screen With HDMI Kits 0

Applicable Scenarios

This 10.4-inch high-brightness industrial LCD screen is widely used in various industrial fields, including but not limited to:

Industrial Control Systems: Used in CNC machine tools, industrial robots, and automated production lines for real-time display of operation parameters and control interfaces.
Outdoor Equipment: Applied in outdoor monitoring stations, traffic signal control cabinets, and environmental detection equipment, adapting to strong light environments.
Medical Equipment: Suitable for medical monitoring instruments, diagnostic equipment, and hospital bedside terminals, with stable performance and clear display.
Logistics & Transportation: Used in logistics sorting equipment, vehicle-mounted control systems, and warehouse management terminals, improving work efficiency.
Marine & Military: Applicable to marine control consoles and military equipment with harsh environmental requirements, ensuring reliable operation in extreme conditions.
